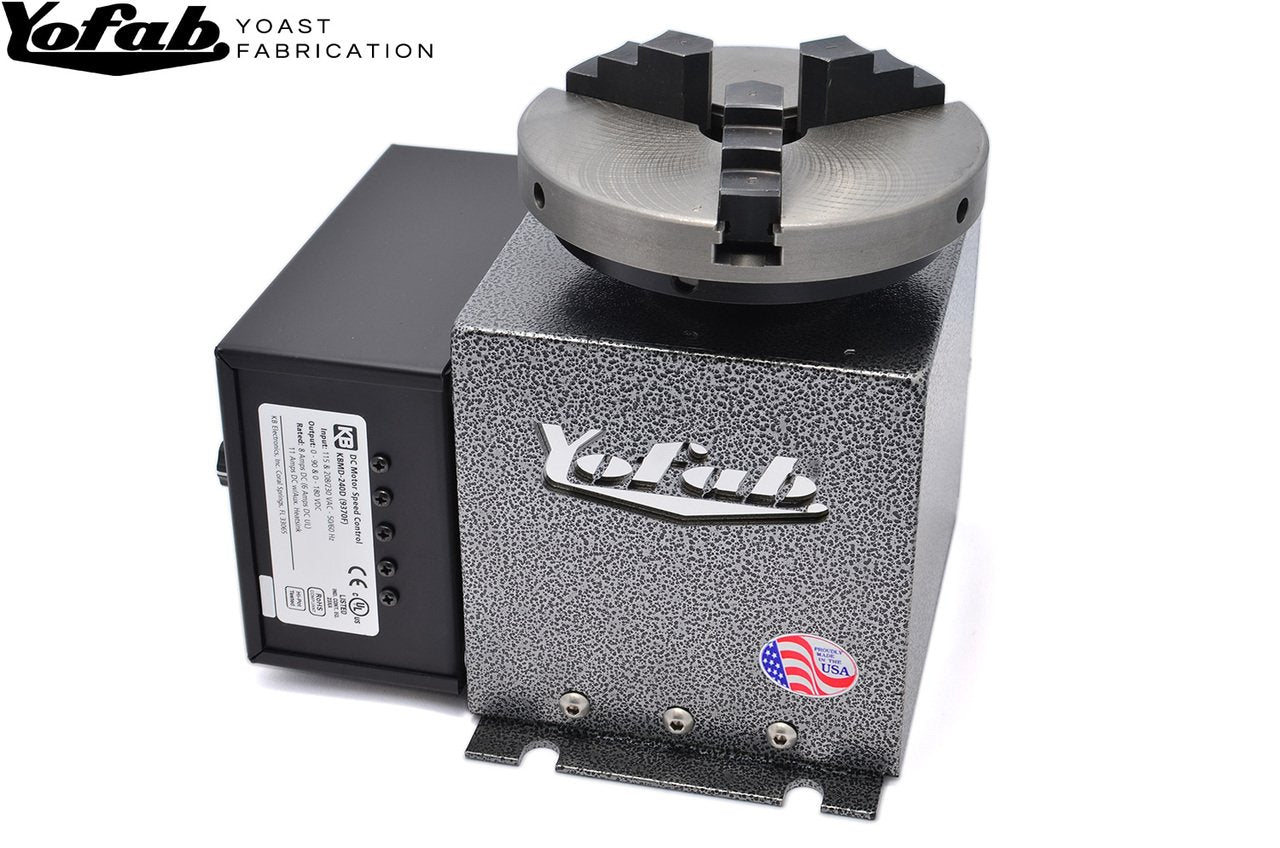

AP500 Welding Positioner With Optional 3-Jaw Chuck

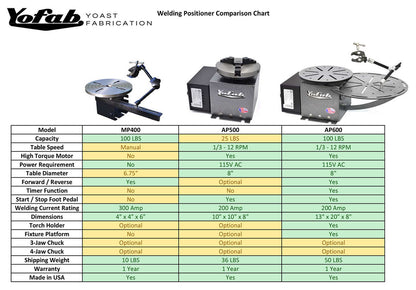

Welding Positioner Comparison Chart

AP500 Bench Top Welding Positioner


AP500

Free Shipping Frais de port calculés à la caisse.

The AP500 is our original design bench top welding positioner. Use it to make welding round items, such as pipe fittings and exhaust components a breeze. It may also be used in any type of work that would benefit from an electrically powered rotary turn table. The AP500 positioner plugs into a standard 115V AC outlet, has variable speed control from 1/3 - 12 RPM and a 25 pound capacity.

The driveline is powered by a heavy duty made in USA die cast gear box with solid steel gears, coupled by a steel drive chain and bronze bearings. It comes standard with a made in USA foot pedal with on/off control. The motor control is also made in the USA and maintains constant torque through variable speeds. If you need directional control we can add an optional forward/reverse switch.

The 6.75" x 1/2" thick steel table comes standard and features concentric grooves every 1/2" to help in centering your workpiece. If most of your work is production welding, you will want to upgrade to our 3-jaw chuck; It's auto centering, has reversible jaws, a capacity of 1/8" - 7" and quickly adjusts using removable levers (3-jaw chuck info). If you need to grip square or rectangular shaped parts add our 4-jaw chuck; it has reversible jaws and a capacity of 1/2" - 5-1/4" (4-jaw chuck info). Add a welding chuck to your AP500 at a discounted price above.

The AP500 comes standard with a durable silver hammertone powder coat finish, stainless steel fasteners throughout and a stainless backed Yofab logo for years of quality service. The base is slotted (8-1/2" x 3-5/8") for quick & easy mounting to a welding bench. Including the control box, the AP500 is only 10"W x 10"L x 8"H. The control box is securely bolted to the positioner allowing it to overhang a table's edge to free up even more table space.

Capacity: 25LBS properly balanced with table in horizontal position.
Table Speed: 1/3 - 12 RPM.
Motor: High torque gear-motor with steel gears and bronze bearings. Made in USA.
Power Requirement: 115V AC 60Hz @ 1.3 Amps. 8' Cord with grounded plug supplied.
Overload Protection: Power and motor fuse.
Table Diameter: 6.75" diameter x 1/2" thick steel table top with concentric grooves every 1/2". Made in USA.
Table Rotation: Forward-Off-Reverse, controlled by optional toggle switch on front panel.
Speed Control: Motor speed control board maintains constant torque and speed from 1/3 - 12 RPM. Made in USA.
Start / Stop Control: On-Off foot pedal with 10' cord standard. Illuminated power switch. Made in USA.
Welding Current Grounding Circuit: 200 Amps @ 50% duty cycle.
Dimensions: Including control box: 10" Wide x 10" Long x 7-1/2" Table Top, 8-1/2" Chuck Top.
Construction: Heavy duty steel construction and stainless steel fasteners throughout. Powder Coat exterior. Made in USA.
Shipping Weight: 36 pounds.
Warranty: 1 year.
