4-Jaw Welding Positioner Chuck

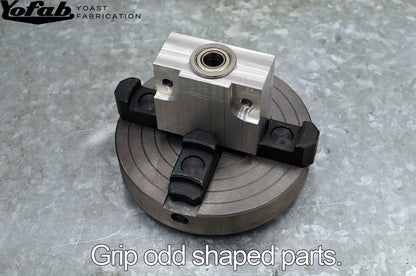

Grip odd shaped parts welding chuck

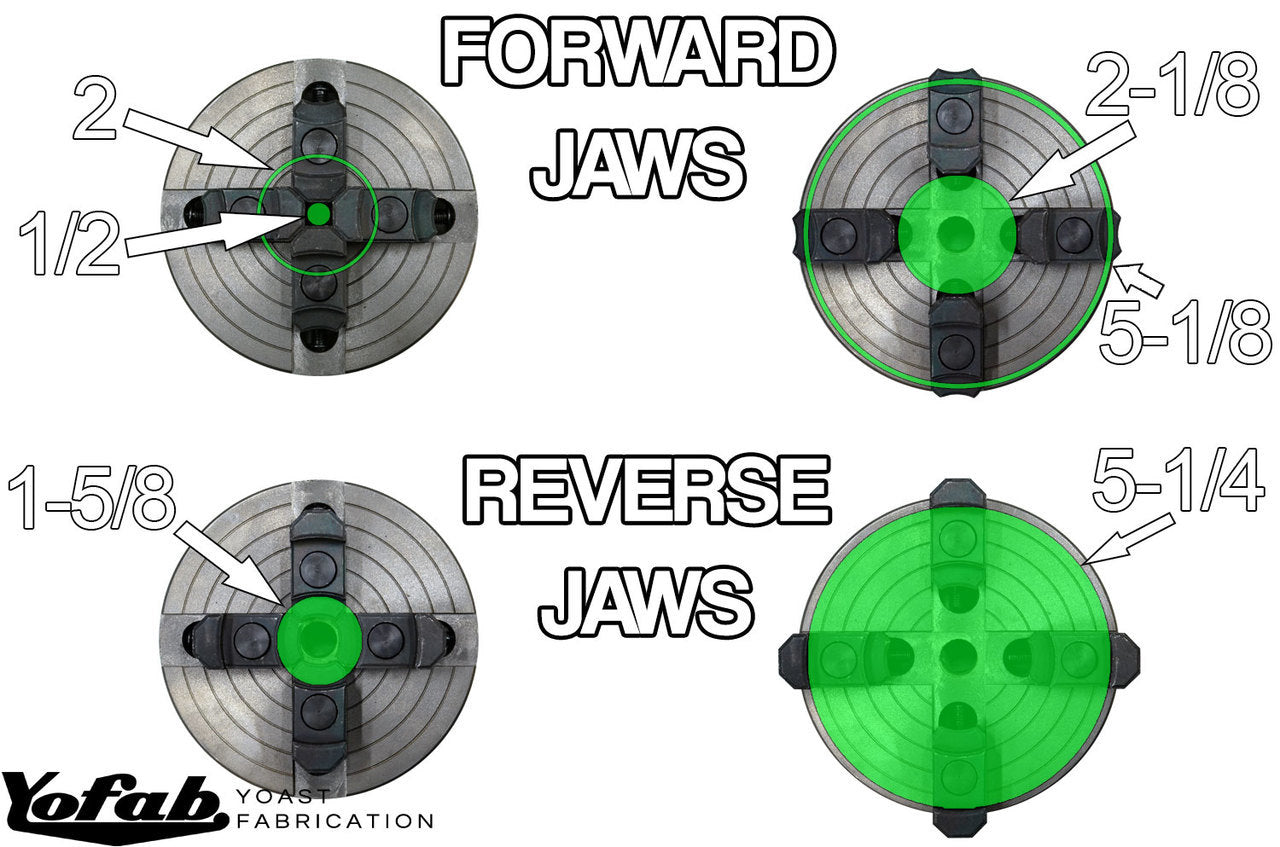

4-Jaw Chuck Capacity Chart

4-Jaw Welding Positioner Chuck


Prix régulier $209.95
Free Shipping Frais de port calculés à la caisse.

Our 6" 4-Jaw welding chuck has a capacity of 1/2" to 5-1/4" and is open & closed with the included chuck key. Features concentric rings engraved into chuck face to help center work piece. Jaws are NOT auto centering so you can grip odd shaped parts. Center of chuck is threaded 3/4"-16 x 1" to mount to our AP500, AP600 or MP400. The jaws are reversible depending on your work-holding requirements.

Capacity: 1/2" to 5-1/4" O.D. and 2" to 5-1/8" I.D.
Chuck Key: Includes chuck key.
Chuck Dimensions: 6" diameter x 1-3/4" tall.
Chuck Jaws: Four steel reversible jaws for I.D. and O.D. clamping.
Mounting: Center threaded 3/4"-16 x 1.
